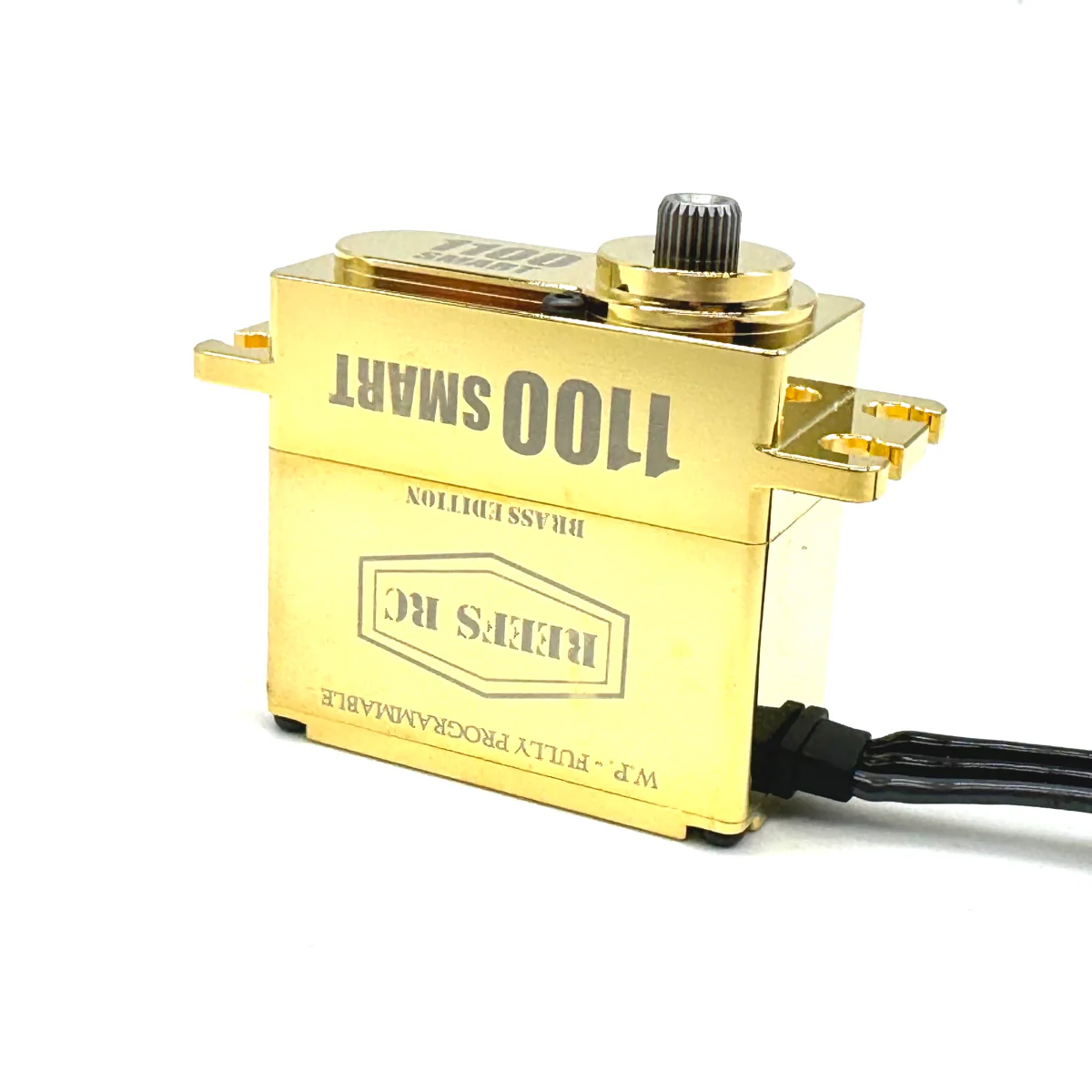

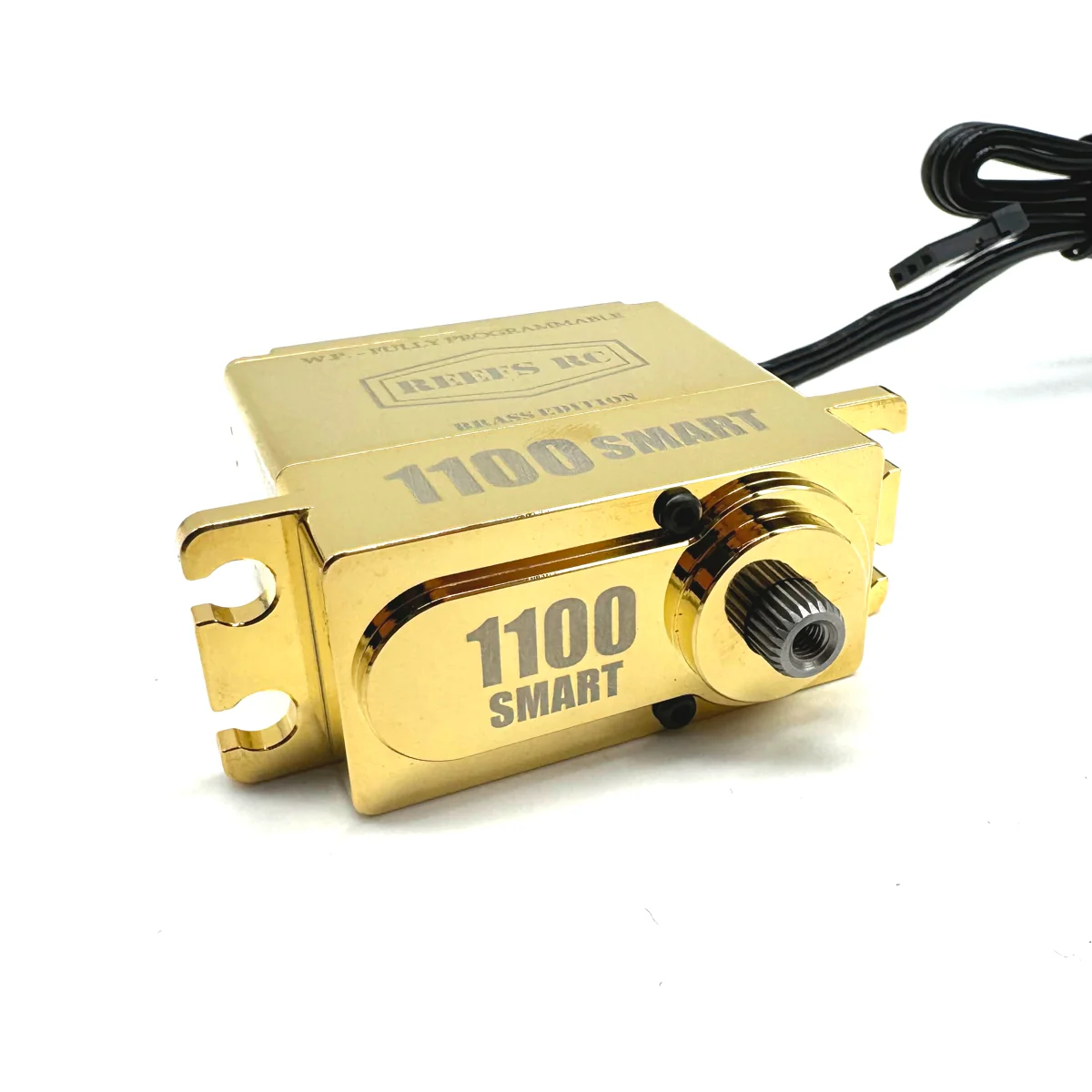

• High Torque High Speed Brushless SERVO or WINCH
• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK (Sold separately) and Software.
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
• Military Grade Construction
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / BRASS Casing / ULTRA Finish
• Weight: 5.29oz / 150g
• Bearing Type: 4 Ball Bearings / Weight: 2.99oz
• Dimension: 1.57 x .79 x 1.5 (LWH)
• Torque: 760oz (54.7kg)@ 6v/ 930oz (67kg)@7.4v/ 1100oz (79.2kg)@8.4v
• Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
• Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V
• It is mandatory to ensure your BEC can meet the servo’s loaded current demand. Failure to do so will void warranty. Recommended: REEFS 8.4V EZ-BEC

For programming, the USB Link is required.

Item# REEFS119
