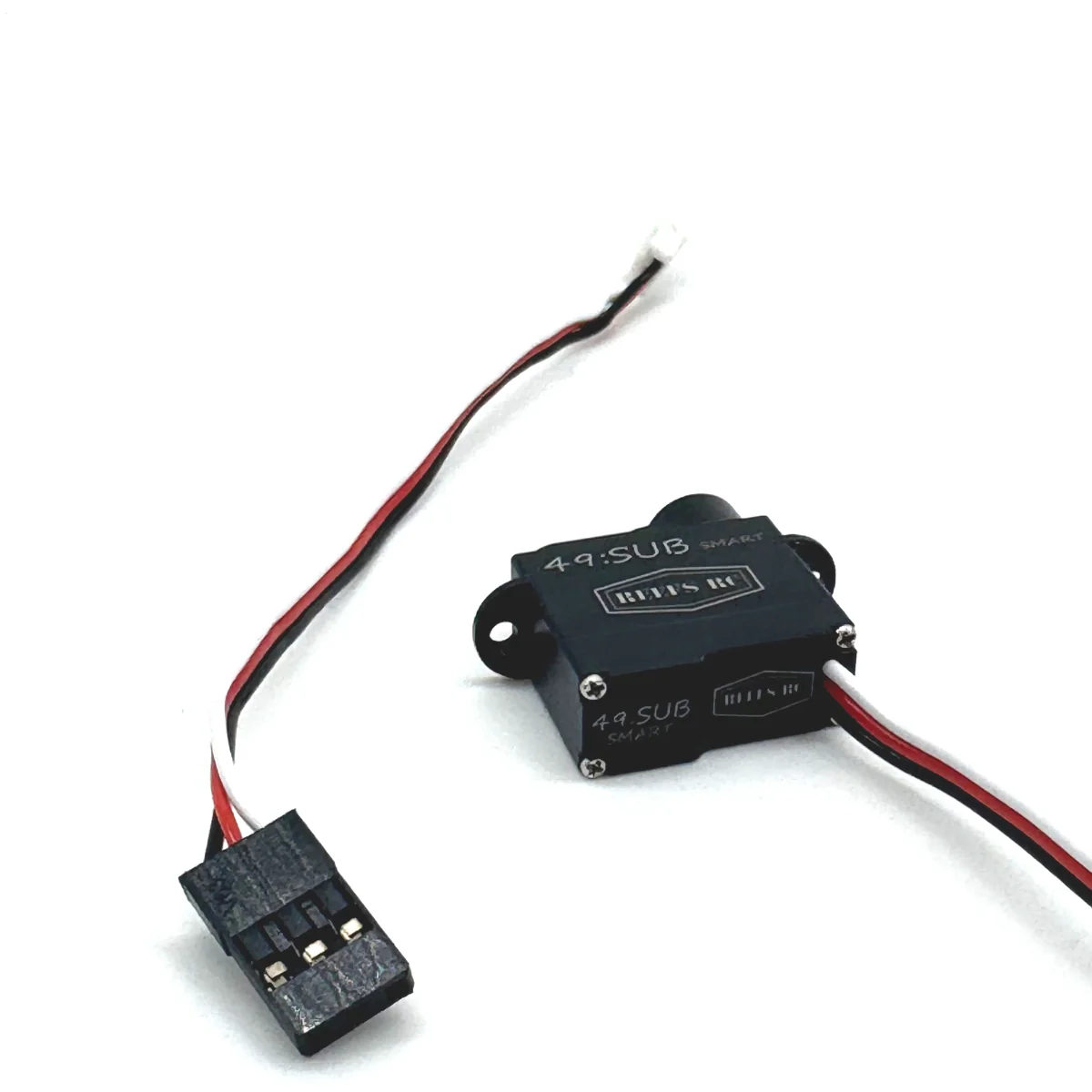

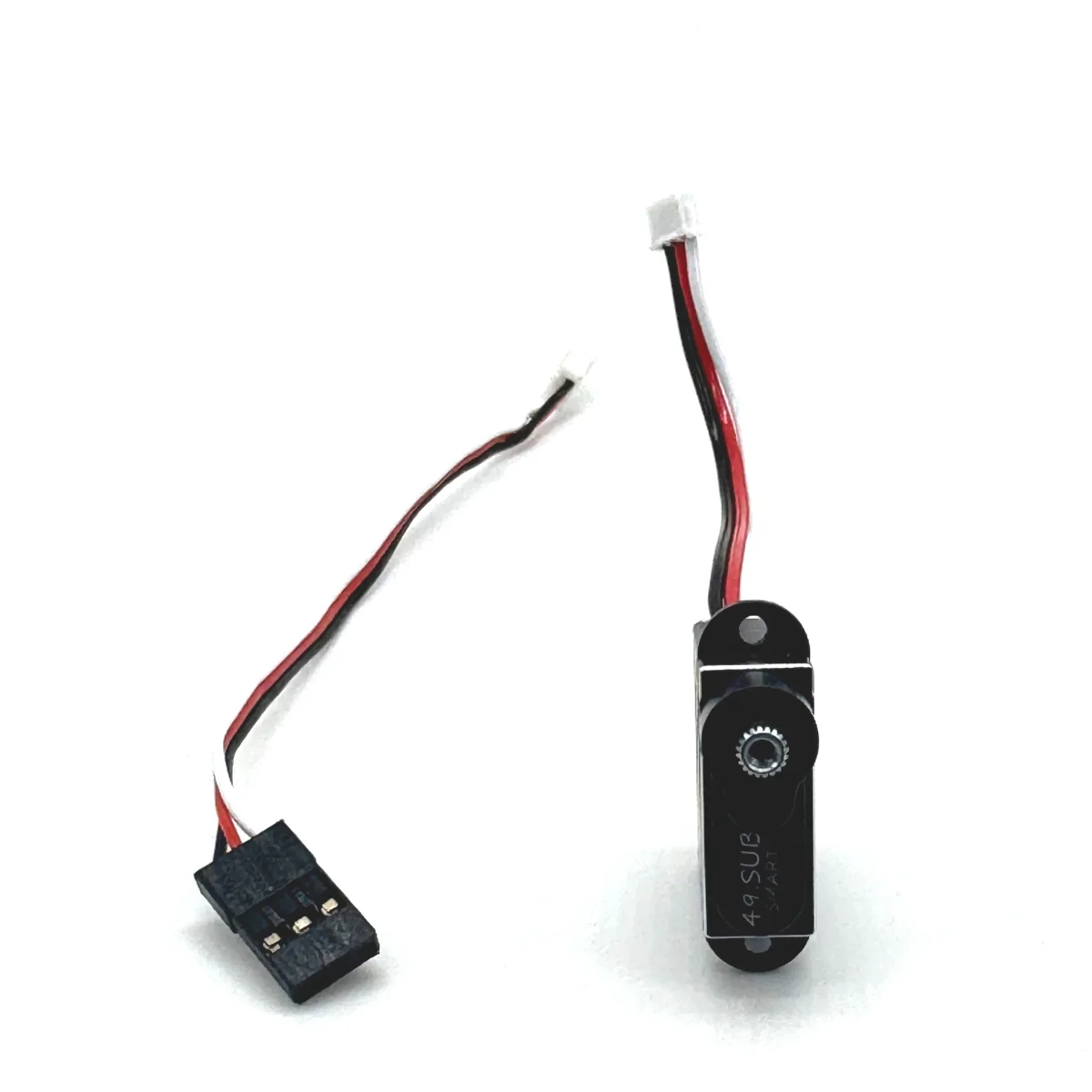

49Sub Micro Servo - REEFS207
49SubMicro Tabs are recommended for multi use installs.
High Torque High Speed
Servo / Winch
Military Grade Construction
Pulse Width Modulation Control
SMART Chip Technology
REEFS LINK required for Programming
(Optional) Comes as Servo
Voltage 4.8v - 8.4v
Internal: Metal Gears
CNC Aluminum Casing
Sealed Bearing
Temp Rate: -15C°~ +70C
Operating Travel: 180°±10°
Mechanical Angle: No Limit
Motor Drive: IC Drive
Weight: .24oz / 7g
WIRE: JST(JR) 60mm/28AWG

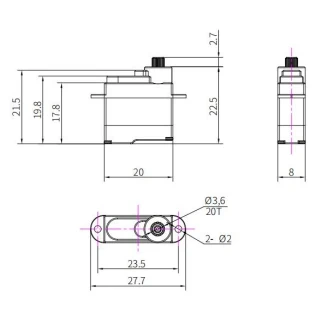

20 x 8 x 17.8 mm (LWH)
Torque: 37oz (2.7kg)@ 6.0v
43oz (3.2kg)@ 7.4v
49oz (3.5kg)@ 8.4v
Speed: .075 sec @ 6.0v
.058 sec @ 7.4v
.05 sec @ 8.4v
Spline: 20Tφ4.0mm
Dead Band Width: 2¦Ìs
BEC Not Required,
Recommended for Max Perf.
UnloadCurrent
[email protected]
[email protected]
[email protected]
[email protected]
LoadingCurrent
[email protected]
[email protected]
[email protected]
[email protected]
REEFS207
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
