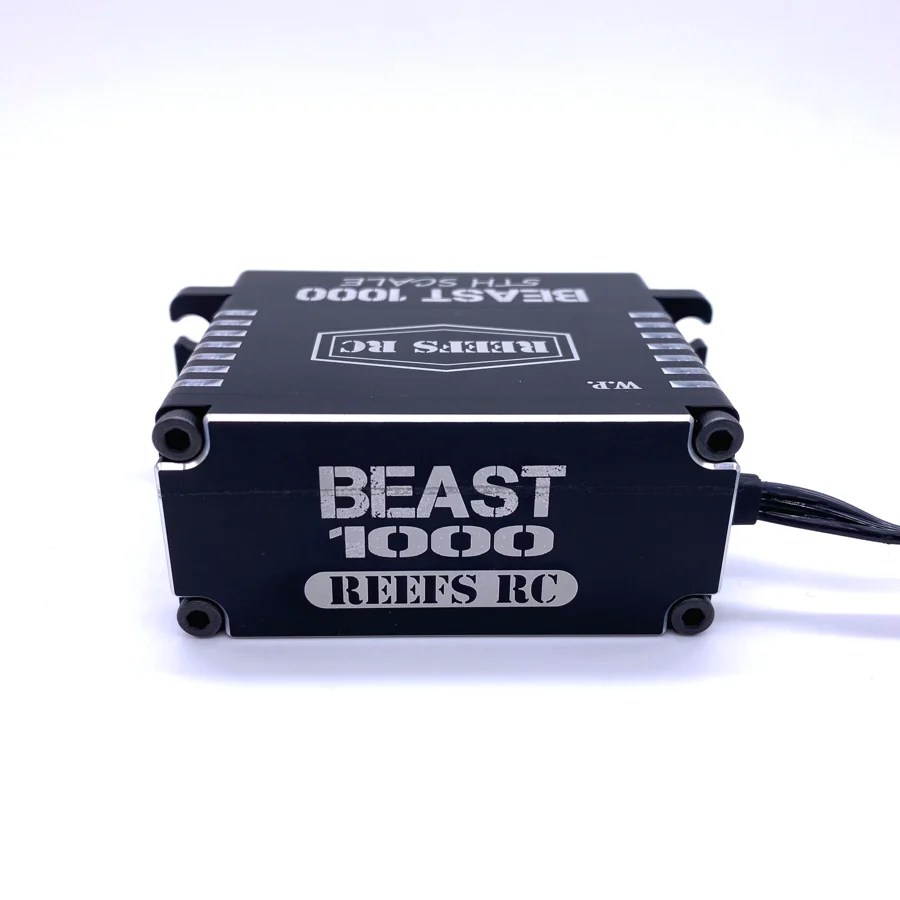

Beast 1000 1/5th Scale Servo #REEFS102
SPECIFICATIONS:
- High Torque High Speed Brushless Servo

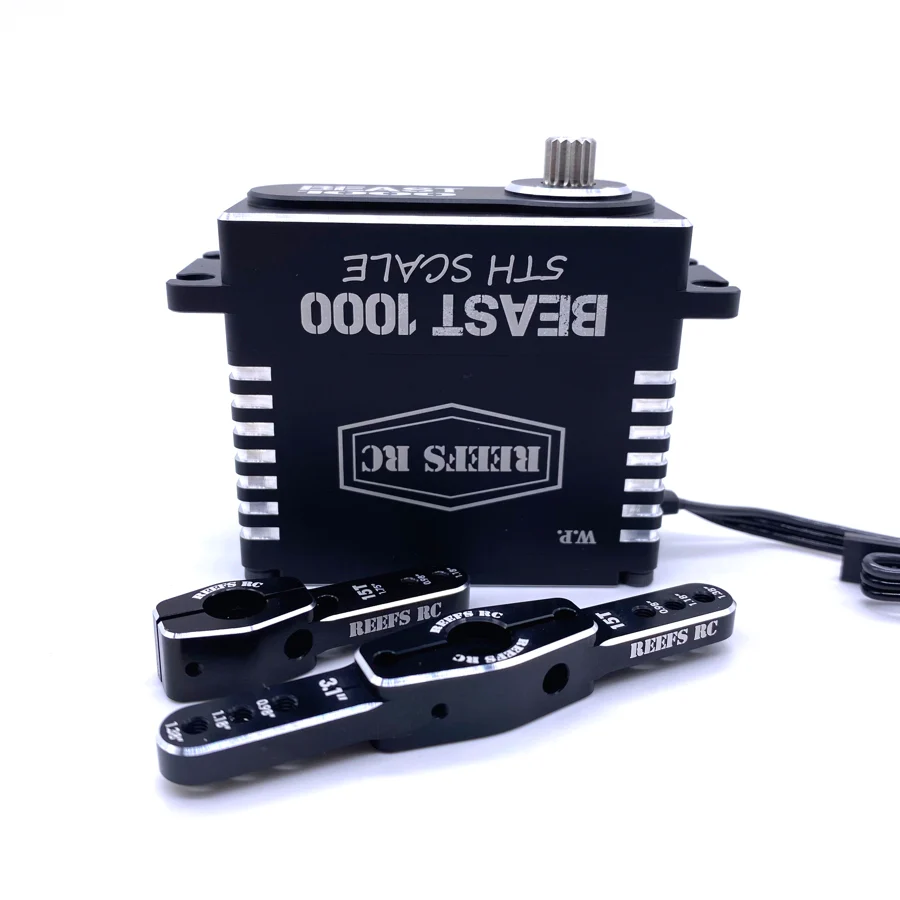

- INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN
- IP67 Rated WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage: 4.8V - 8.4V
- Mechanical Angle: No Limit
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 5 Ball Bearings /
- Wires: 22AWG
- Weight: 10oz / 285g
- Dimension: 2.59 x 1.18 x 2.32 (LWH)
- Torque: 800oz (57kg)@ 6v/ 900oz (64.8kg)@7.4v/ 1080oz (77.8kg)@8.4v
- Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
- Spline: 15T / Dead Band Width: 2uSec
- BEC Not Req. (Recommended for max performance)
- Load Current:
- 8800 mA @ 4.8V 9800 mA @ 6.0V 10500 mA @ 7.4V 11000 mA @ 8.4V
- Unload Current:
- 550 mA @ 4.8V 600 mA @ 6.0V 700 mA @ 7.4V 820 mA @ 8.4V
Hardware Included:
- (1) Servo Horn Screw 3.5x8mm
- (3) 3x16mm Cap Head Screws for end of horns.
- (4) 2mm Horn Clamping Cap Head Screws
Item# REEFS102
