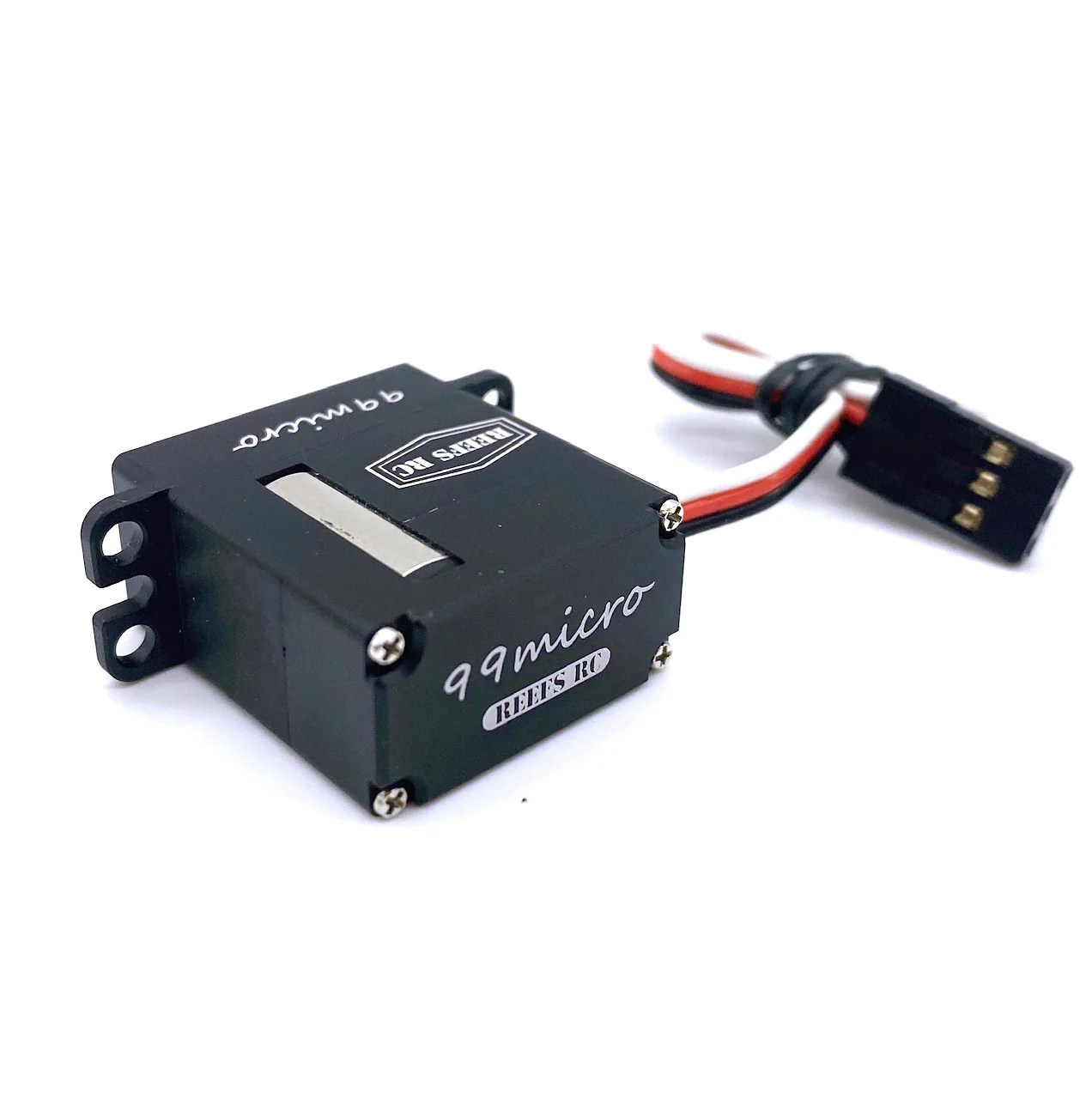

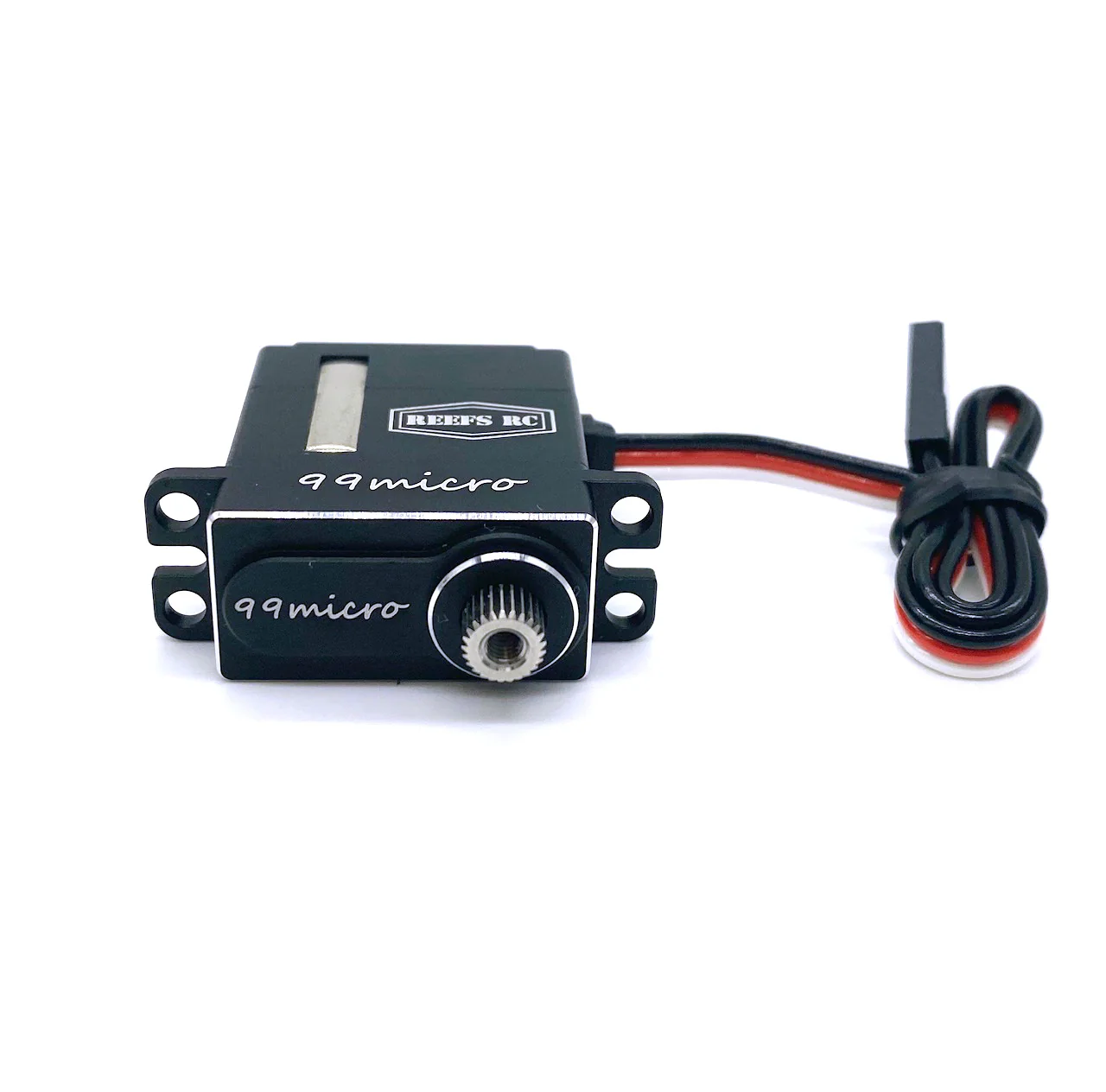

99 Micro Servo #REEFS25
NOTE: Not recommended for use on the Mini-B or Mini-T.
We recommend the Micro 179.
179 Smart Brushless Micro Servo – Reefs RC
SPECIFICATIONS:
- High Torque High Speed Micro Servo
- Water resistant
- Voltage 6v-8.4v
- Internal: Precision Metal Gears / All CNC Alum. REEFS Case

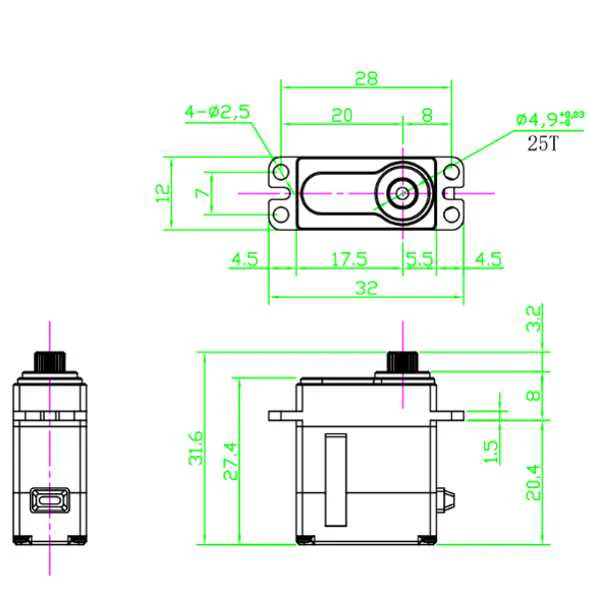

- Bearing Type: 2BB /Weight: .70oz / Dimension: .90 x .47 x 1.08 (LWH)
- Torque: 89oz (6.4kg)@ 6.0v / 99oz (7.12kg)@ 7.4v / 115oz (8.28kg)@ 8.4v
- Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
- Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required
Unload Current
- 200mA @ 4.8V
- 350mA @ 6.0V
- 450mA @ 7.4V
- 550mA @ 8.4V
Loading Current (Max Stall Current)
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
Item# REEFS25
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
