XPT3 LCG Transmission - RawSilver #REEFS181

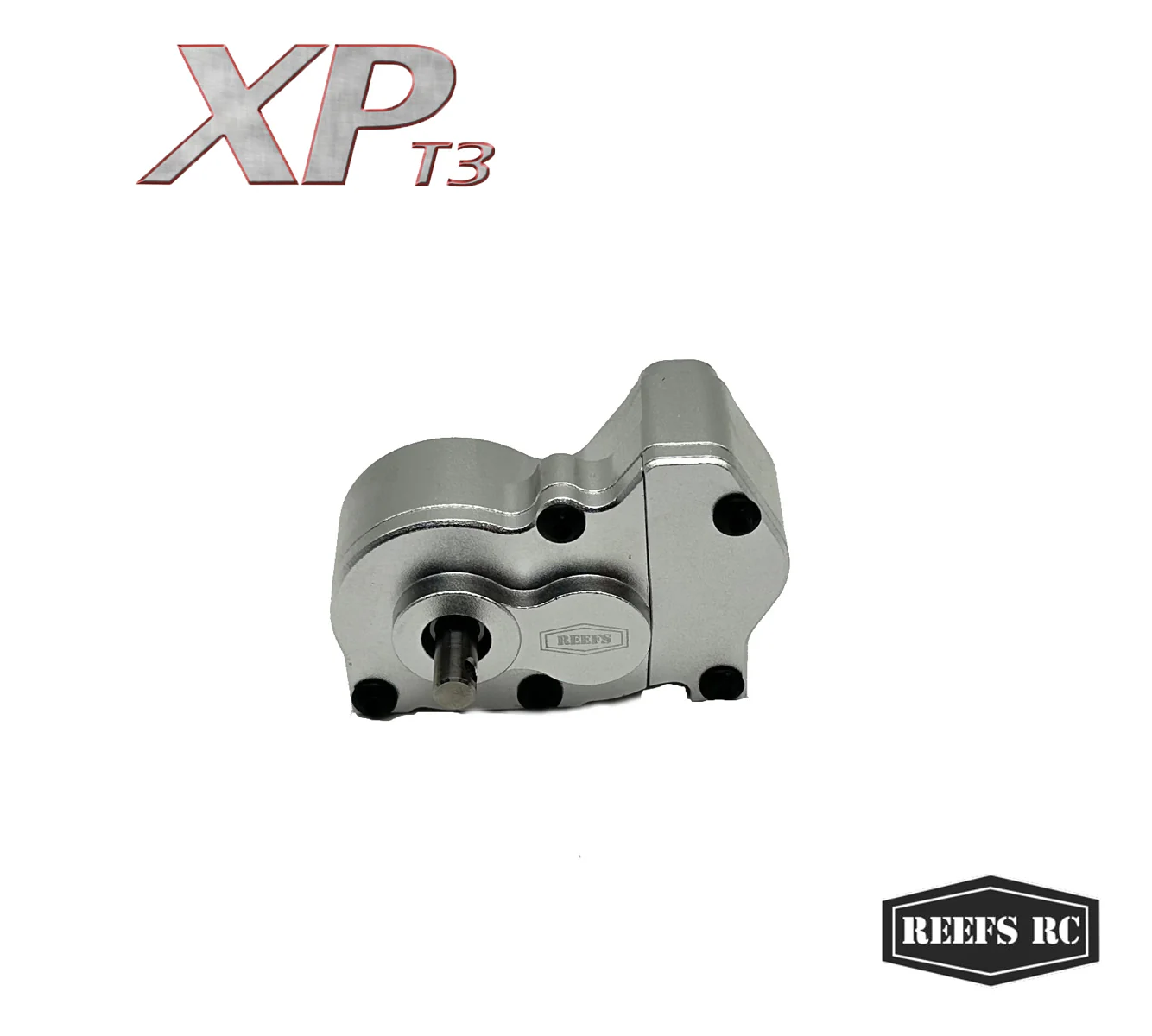

The NEW XPT3 LCG Transmission from REEFS! Designed in house from the ground up to provide the best performance and durability possible. Details:

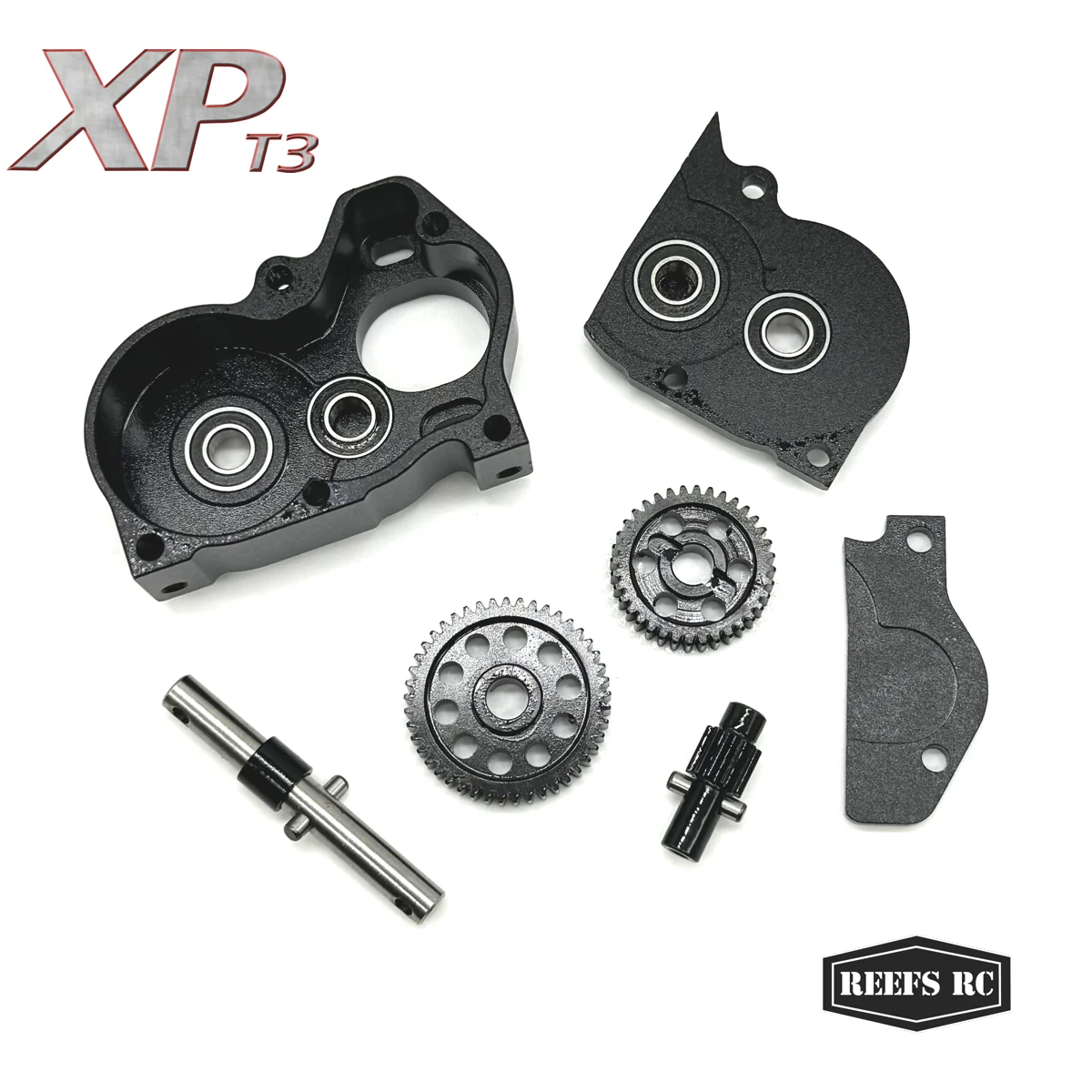

Machined Aluminum case,
Hardened Steel Gears, 5mm Titanium output shaft, forward motor mounting, and 48 pitch gears.
Easy to set gear mesh with a cover to help keep the elements out.
Weight: 75g
Pinion size 11t-20t 48p
Trans ratio 6.75:1-12.27:1
FDR straight axle 25.31:1-46.02:1
FDR Axial portal axles 48.52:1-88.21:1
FDR Vanquish F10 portal axles 35.44:1-64.43:1
*FDR = Final Drive Ratio
Output Shaft size: 5mm
Dimensions:
H: 38mm
L: Case 24mm/ Shaft End to End 41mm
W: 54mm
Recommended: 11t pinion for straight axles, and 14t pinion for portal axles. May vary based on rig.
