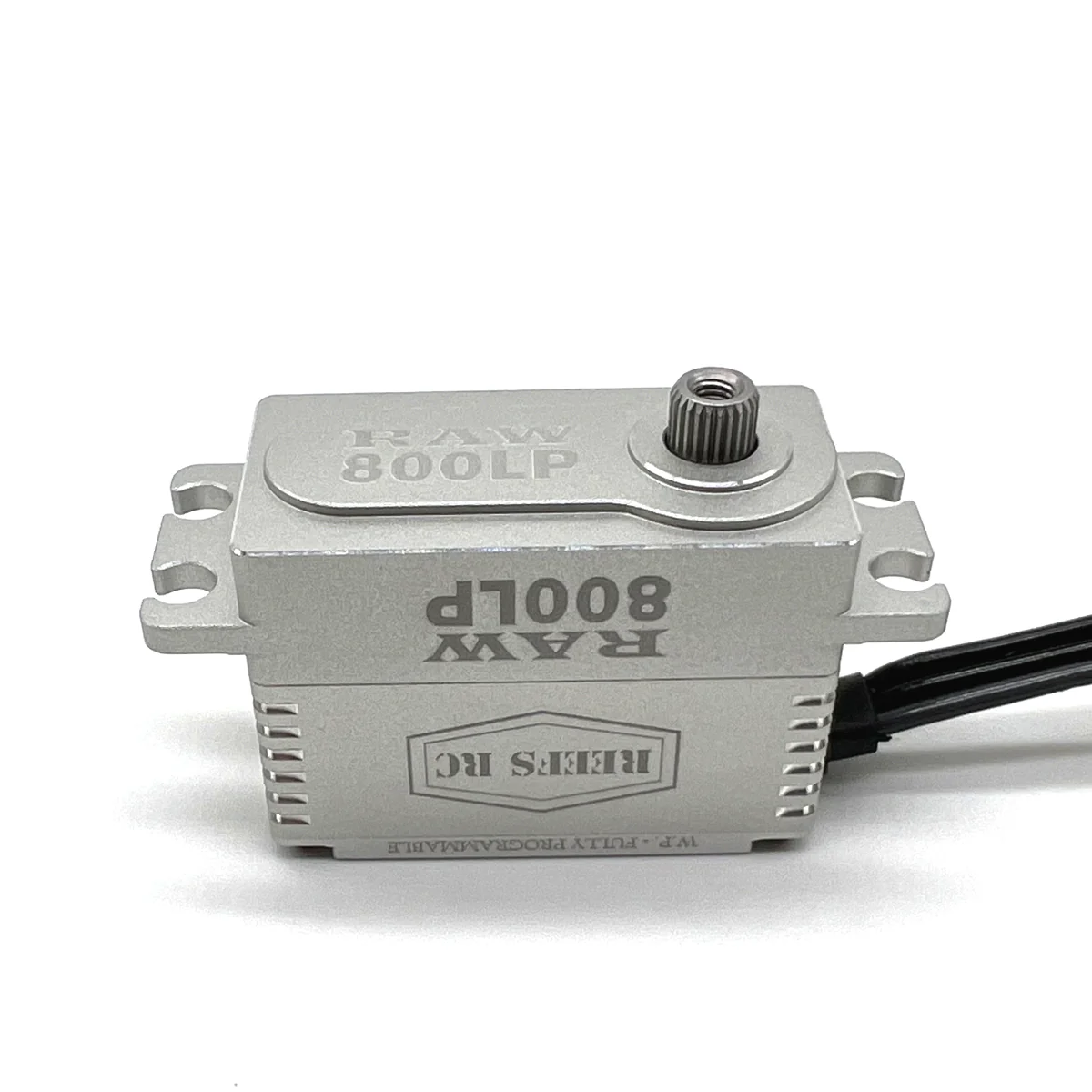

RAW 800LP. #REEFS147
RAW800 Low Pro: Fully Programmable Servo
High Torque High Speed
4 POLE - Brushless
IP67 Rated WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)
Internal: Steel Gears
CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm

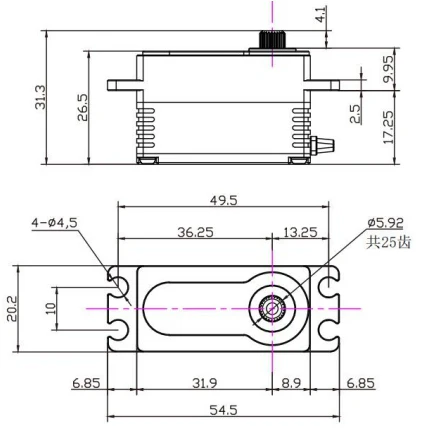

Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz (45.7kg)@ 6v/ 715oz (51.5kg)@7.4v/ 800oz (57.6kg)@8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
It is mandatory to ensure your BEC can meet the servo’s loaded current demand. Failure to do so will void warranty. Recommended: REEFS 8.4V EZ-BEC
Item# REEFS147
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Original: $159.99
-70%$159.99
$48.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
RAW800 Low Pro: Fully Programmable Servo
High Torque High Speed
4 POLE - Brushless
IP67 Rated WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)
Internal: Steel Gears
CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm
Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz (45.7kg)@ 6v/ 715oz (51.5kg)@7.4v/ 800oz (57.6kg)@8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
It is mandatory to ensure your BEC can meet the servo’s loaded current demand. Failure to do so will void warranty. Recommended: REEFS 8.4V EZ-BEC
Item# REEFS147
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
